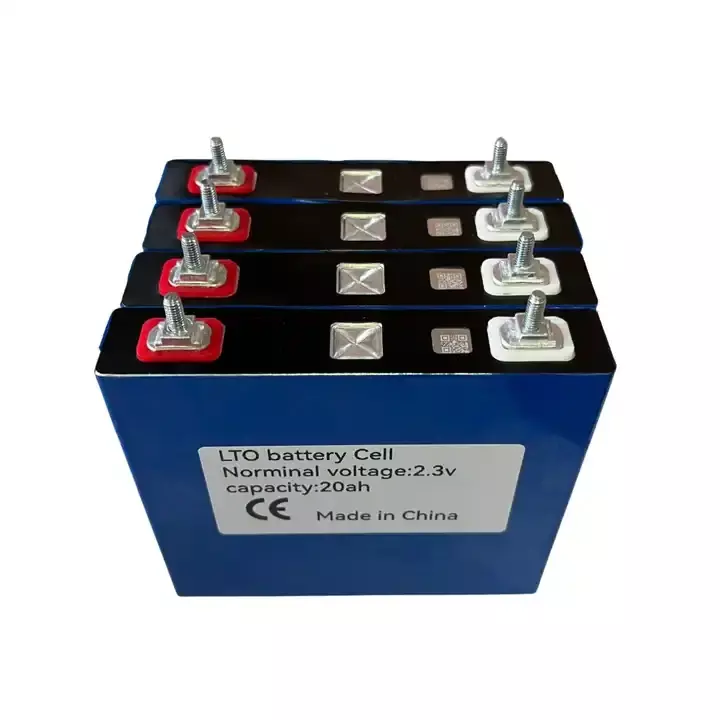

Toshiba 2.3V 20Ah Prismatic Grade A Lithium Titanate Battery LTO Cell for RV Marine batteries
Brand: HAICHEN
MOQ: 2 Pieces
Delivery time: 15 Day
Discover unmatched durability and rapid charging with Toshiba's 23V 20Ah Prismatic Grade A Lithium Titanate Battery, engineered for RVs and marine applications.
Grade A New LTO Battery Cell, High Quality;
100% inspected and packed very well, 2-Year Warrant
Product Details
Experience Revolutionary Power with Toshiba LTO Battery
Transform your energy storage solutions with Toshiba's 23V 20Ah Lithium Titanate Battery. Ideal for demanding RV and marine environments.
Rapid Charging & Long Life Cycle
Benefit from ultra-fast charging and exceptional longevity, ensuring reliable power when you need it most.
Environmentally Friendly & Safe
Designed with safety and sustainability in mind, this LTO cell offers a greener alternative without compromising performance.
Hot Selling LTO Battery 2.4V 20Ah Toshiba SCIB Lithium Battery LTO 20Ah Cell 2.4V Lithium Titanate Battery
Technical Parameters
|
Battery type：
|
LTO
|
|
Nominal Voltage(V)：
|
2.3v
|
|
Nominal Capacity(mAh)：
|
20AH
|
|
Charge Voltage：
|
2.7 V
|
|
Discharge cut-off voltage：
|
1.5V
|
|
1Max charge current：
|
1C
|
|
Max discharge current：
|
26C
|
|
Internal resistance：
|
less than 0.5 Ω
|
|
Charge Temperature(℃)：
|
-30~45Centigrade
|
|
Discharge Temperature(℃)：
|
-23~55Centigrade
|
|
Cycle life：
|
More than 20000 times, DOD at 80%
|
|
Weight(g)：
|
0.515KG
|
|
Size(mm)：
|
T22*W116*H106mm
|
Safety precautions and prohibitions!！
1.Don't leave a cell near a fire or a heat source.
2.Don't throw a cell into a fire.
3.Don't immerse, throw, and wet cell in water / seawater.
4.Don’t store metallic objects (such as keys or screwdriver) near the cell.
5.Don't short circuit (+) and (-) terminals with metallic object intentionally.
6.Don't pierce cells with a sharp object such as a needle, or screwdrivers.
7.Don't heat a part of cells with heating objects such as a soldering iron.
8.Don't hit cells with heavy objects such as a hammer, or heavy weights.
9.Don't put the a cell into a microwave oven, dryer, or a high-pressure container.
10.Don’t expose to water splashing condition.
11.Don’t keep batteries close to baby.
Cautions of Battery Operation
* Use high hardness custom sponge to strengthen the battery
* 5 layers of dangerous goods export corrugated carton
* Positive and negative paste insulation tape
* We will label test data on each cell before delivery
* If customer have requirement, we can provide Wooden Packing for shipping.
