3.2V 190Ah Lifepo4 Battery
Brand: HAICHEN
MOQ: 2 Pieces
Delivery time: 15 Day
Original Catl For Solar Energy Storage,Home Energy Storage System,Home Appliances,Electric Power Systems This item is Catl 3.2V Lifepo4 190Ah：
1.High capacity and stable discharge voltage
2.Longer working time with high performance
3.Outstanding discharge properties and small internal resistance
4.No memory effect, good discharge ability and high load and resist high temperature
5.Pollution free for environmental protection
6.100% Authentic original li-ion rechargeable battery
7.Bulid in anti-explosion protection and circuit protection
8.Long cycle life more than 4000 times
9.Good consistency, low self discharge
10.High discharge rate, high energy density, low temperature resistance
Product Details
Starmax Catl 3.2V 190Ah Lifepo4 Battery Prismatic Cells Lithium Ion Batteries Rechargeable Prismatic Cell Home Energy Storage Solar Battery
| Anode Material | LFP |
| Weight | 3.54kg |
| Voltage | 3.2V |
| Capacity | 190Ah |

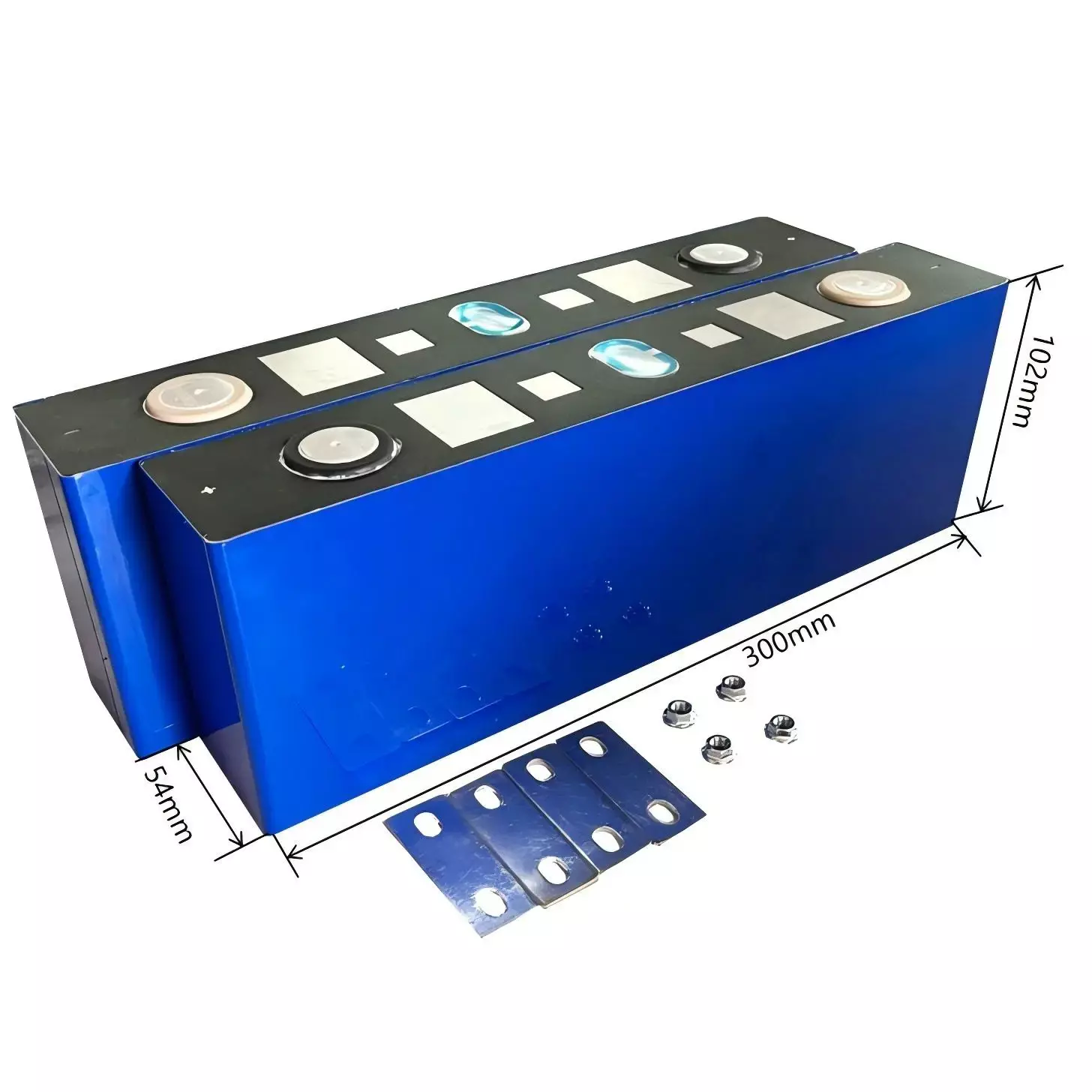

| Size | T50*W300*H102mm |
| Cycle life | ≥4000 Times |
| Internal Resistance | ≤ 0.4mΩ |
| Max discharge current: | 1C |
| Max charge current | 1C |
| Charge Temperature(℃) | 0~60Centigrade |
| Discharge Temperature(℃) | -20~60Centigrade |
| Storage Temperature(℃) | -20~55Centigrade |
| Application | Home Appliances,Electric Power Systems, Solar Energy Storage Systems |
 |
 |
Cautions of Battery Operation
1.Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
2.During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
3.Do not directly solder the cell or pierce it with a nail or other sharp object.
4.Do not turn over battery. Keep it from strike, throw, tread or bending.
5.Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
6.Discarded battery should be well disposed. Do not throw it into the fire or water.
FAQ
Q1.Do you have any MOQ limit for lithium battery?
A: No MOQ.
Q2. Are the batteries come with bus bars+bolts?
A: Yes, it comes with. We can Laser weld screw stud or nut stud per your needs. Normally, one battery will come with 1pc busbar and 2pcs bolts.
Q3.Do you have the used batteries?
A: Sorry, no, our batteries are all brand new.
Q4. How to proceed an order for lithium ion battery?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Can we sign a secrecy agreement if we wanna build a long-term business relationship?
A: Sure, we respect clients requirements, will bring more benefit to you.
Q6:Which shipping method you usually take?
A: Train/Sea DDP, Express, We can also ship with your own shipping agent.
Q7: How do I know whether you've shipped my order or not?
A: Tracking No.will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo of the order and let you know the detail shipment information.
A: No MOQ.
Q2. Are the batteries come with bus bars+bolts?
A: Yes, it comes with. We can Laser weld screw stud or nut stud per your needs. Normally, one battery will come with 1pc busbar and 2pcs bolts.
Q3.Do you have the used batteries?
A: Sorry, no, our batteries are all brand new.
Q4. How to proceed an order for lithium ion battery?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Can we sign a secrecy agreement if we wanna build a long-term business relationship?
A: Sure, we respect clients requirements, will bring more benefit to you.
Q6:Which shipping method you usually take?
A: Train/Sea DDP, Express, We can also ship with your own shipping agent.
Q7: How do I know whether you've shipped my order or not?
A: Tracking No.will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo of the order and let you know the detail shipment information.
