50ah li ion battery 12s1p module NMC Batteries Lithium Ion Energy Storage Battery for Golf Carts
43.2V 50ah home solar energy system 20KWh Ebike Motorcycle RV Golf Cart Battery 355VDA battery module 12S1P
Brand New Grade A lithium ion battery module
Factory directly sell with high quality
100% testing with voltage, internal resistance, isolation testing and capacity testing
Product Type:
Technical Parameters:
|
Battery type：
|
43.2V 50Ah NMC Module
|
|
|
Nominal Voltage(V)：
|
43.2V
|
|
|
Nominal Capacity(mAh)：
|
50AH
|
|
|
Charge Voltage：
|
50.4V
|
|
|
Discharge cut-off voltage：
|
33V
|
|
|
1Max charge current：
|
1C
|
|
|
Max discharge current：
|
3C
|
|
|
Internal Resistance：
|
6.52mΩ
|
|
|
Charge Temperature(℃)：
|
0~45Centigrade
|
|
|
Discharge Temperature(℃)：
|
-20~60Centigrade
|
|
|
Storage Temperature(℃)：
|
-20~45Centigrade
|
|
|
Cycle life：
|
1500times(80% of initial capacity at 0.2C rate, IEC Standard)
|
|
|
Weight(g)：
|
11.6KG
|
|
|

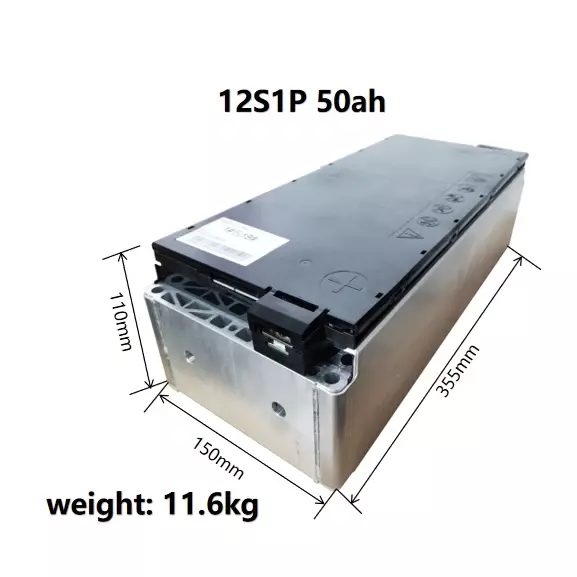

Size(mm)：
|
110*150*355mm
|
Cautions of Battery Operation:
1.Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
2.During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
3.Do not directly solder the cell or pierce it with a nail or other sharp object.
4.Do not turn over battery. Keep it from strike, throw, tread or bending.
5.Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
6.Discarded battery should be well disposed. Do not throw it into the fire or water.
