EVE 33V 18650 3200mAh 3.6V Rechargeable 3.7V lithium Battery cell ideal for battery packs
Brand: HAICHEN
MOQ: 2 Pieces
Delivery time: 15 Day
Grade A New NMC Battery Cell, High Quality;
100% inspected and packed very well, 2-Year Warrant
Product Details
EVE INR18650 EVE 33V 18650 3200mAh Lithium Cell Battery 3.7V 18650 High Capacity 18650 Li ion Battery for Ebike Battery
|
item
|
Specification
|
|
Energy Density
|
250Wh/Kg
|
|
Battery Size
|
18650
|
|
Nominal Voltage
|
3.6V
|
|
Nominal Capacity
|
3200mAh
|
|
AC-IR
|
≤30mΩ
|
|
Cell Weight
|
46g
|
|
End-of-charge Voltage
|
4.2V
|
|
End-of-discharge Voltage
|
2.5v
|
|
Max Continuous Discharge current
|
10000mA
|
|

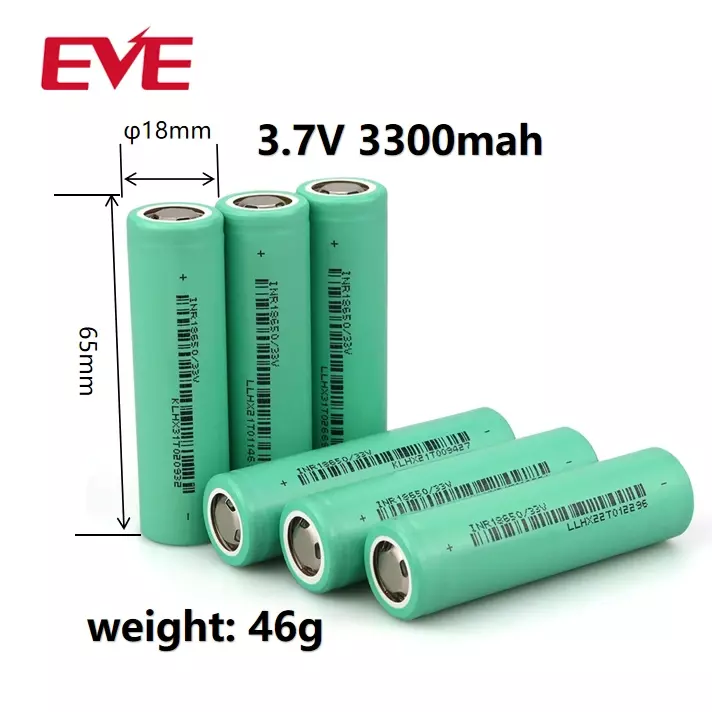

Cell Dimension
|
Height: 65.00±0.15mm
Diameter: 18.35±0.10mm
|
|
Operating Temperature Range
|
Charging Temp. 0~15°C
Discharging Temp. 15~50°C
Storage Temp
0~60°C,≤1 month
0~45°C,≤3 month
0~25°C,≤1year
Storage Humidity ≤65% RH
|
|
Continuous Charging/Discharging rate
|
1C/3C
|
Safety precautions and prohibitions!！
1.Don't leave a cell near a fire or a heat source.
2.Don't throw a cell into a fire.
3.Don't immerse, throw, and wet cell in water / seawater.
4.Don’t store metallic objects (such as keys or screwdriver) near the cell.
5.Don't short circuit (+) and (-) terminals with metallic object intentionally.
6.Don't pierce cells with a sharp object such as a needle, or screwdrivers.
7.Don't heat a part of cells with heating objects such as a soldering iron.
8.Don't hit cells with heavy objects such as a hammer, or heavy weights.
9.Don't put the a cell into a microwave oven, dryer, or a high-pressure container.
10.Don’t expose to water splashing condition.
11.Don’t keep batteries close to baby.
Cautions of Battery Operation
* Use high hardness custom sponge to strengthen the battery
* 5 layers of dangerous goods export corrugated carton
* Positive and negative paste insulation tape

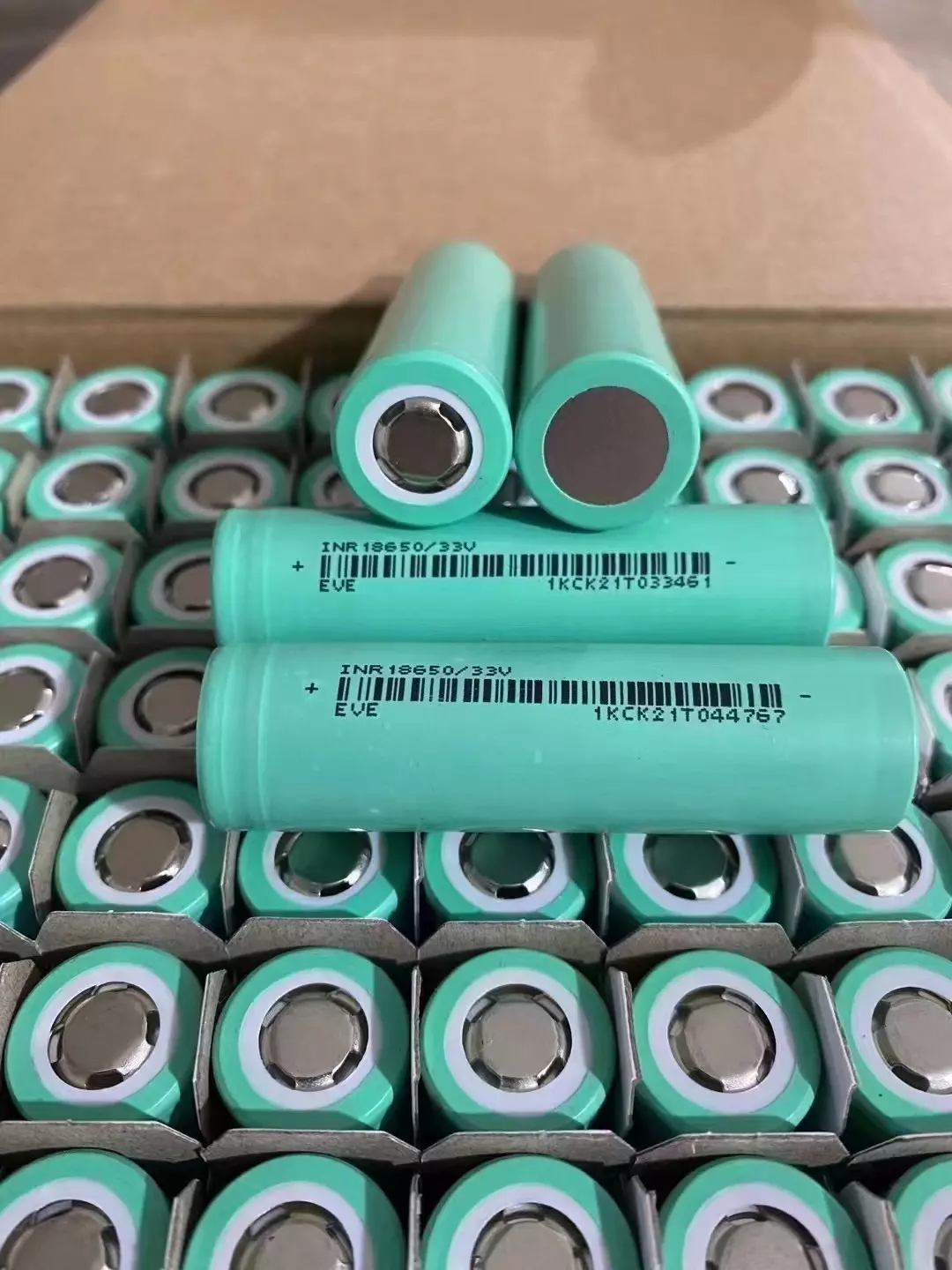

* We will label test data on each cell before delivery
* If customer have requirement, we can provide Wooden Packing for shipping.
