3.7V 234Ah NMC Prismatic Battery
High Quality CALB Contemporary Amperex Technology 3.7V 234Ah NMC Prismatic Battery
| Brand Name： | CALB |
| Battery Type： | NMC Prismatic Battery |
| Nominal Capacity(Ah)： | 234AH |
| Nominal Voltage(V)： | 3.7V |
| Max Charge Voltage(V)： | 4.2V |
| Discharge Cut-off Voltage(V)： | 2.75V |
| Max Charge rate： | 1C |
| Max Discharge rate： | 3C |
| Internal Resistance： | ≤0.7mΩ |
| Charge Temperature(℃)： | 0°C~60°C |
| Discharge Temperature(℃)： | -20°C~60°C |
| Cycle life： | More than 2000 times |
| Weight: | 3.25 kg |
| Size(mm)： | T67*W220*H106 (mm) |
| Certification： | CE,UL,UN38.3,MSDS |
Key Features:
1. Massive Energy Storage
The CATL 3.7V 234Ah NMC prismatic battery delivers an ultra - high rated capacity of 234Ah at a nominal voltage of 3.7V. This enables it to provide long - lasting power for energy - hungry applications like electric buses and recreational vehicles, significantly reducing the need for frequent recharging.
2. Robust Power Delivery
With a maximum discharge rate of 3C, the battery can rapidly and stably release stored energy. This feature is essential for high - power - demand scenarios, such as electric forklifts during heavy - duty operations and golf carts when accelerating with loads.
3. Low Internal Resistance

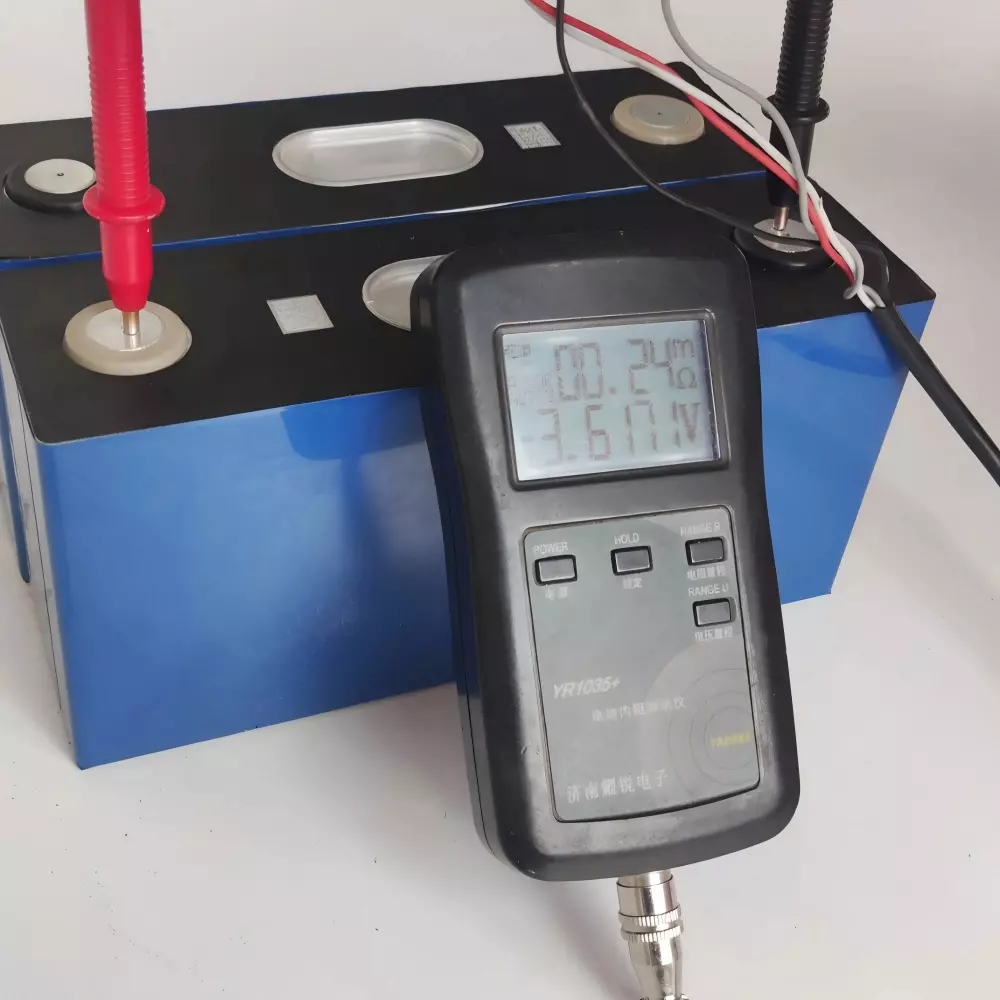

The internal resistance of the battery is ≤0.7mΩ, which minimizes energy loss during the charge - discharge cycle, enhances energy utilization efficiency, and ensures stable operation even in harsh working environments.
4. Long Cycle Life
The battery has a cycle life of more than 2000 times, meaning it can be charged and discharged repeatedly over a long period without significant performance degradation. This makes it a cost - effective and reliable choice for long - term use in electric cars, RVs, and other equipment.
Application:
1. Electric Car
The high capacity and stable power output of the CATL 3.7V 234Ah NMC prismatic battery make it ideal for electric cars. It can provide sufficient energy for long - distance travel and ensure smooth acceleration and stable operation on different road conditions.
2. Recreational Vehicle
For RVs, this battery offers reliable power for various onboard systems like lighting, air conditioning, and entertainment equipment. Its long cycle life and high energy density also support extended off - grid travel, enhancing the comfort and convenience of RV trips.
3. Electric Bus
Electric buses require large - capacity and high - power batteries to meet the demands of public transportation. The CATL 3.7V 234Ah NMC prismatic battery, with its 234Ah capacity and 3C discharge rate, can provide the necessary power for buses to run continuously on urban routes, reducing operational costs and environmental impact.
4. Boat
In marine applications, the battery’s wide operating temperature range (-30℃ ~ 60℃) and high energy storage capacity make it suitable for powering electric boats. It can support navigation systems, onboard electronics, and propulsion systems, ensuring reliable performance in different water and climate conditions.
