3.7V 196Ah NMC Prismatic Battery
High Quality CALB Contemporary Amperex Technology 3.7V 196Ah NMC Prismatic Battery
| Brand Name： | CALB |
| Battery Type： | NMC Prismatic Battery |
| Nominal Capacity(Ah)： | 196AH |
| Nominal Voltage(V)： | 3.7V |
| Max Charge Voltage(V)： | 4.2V |
| Discharge Cut-off Voltage(V)： | 2.75V |
| Max Charge rate： | 1C |
| Max Discharge rate： | 3C |

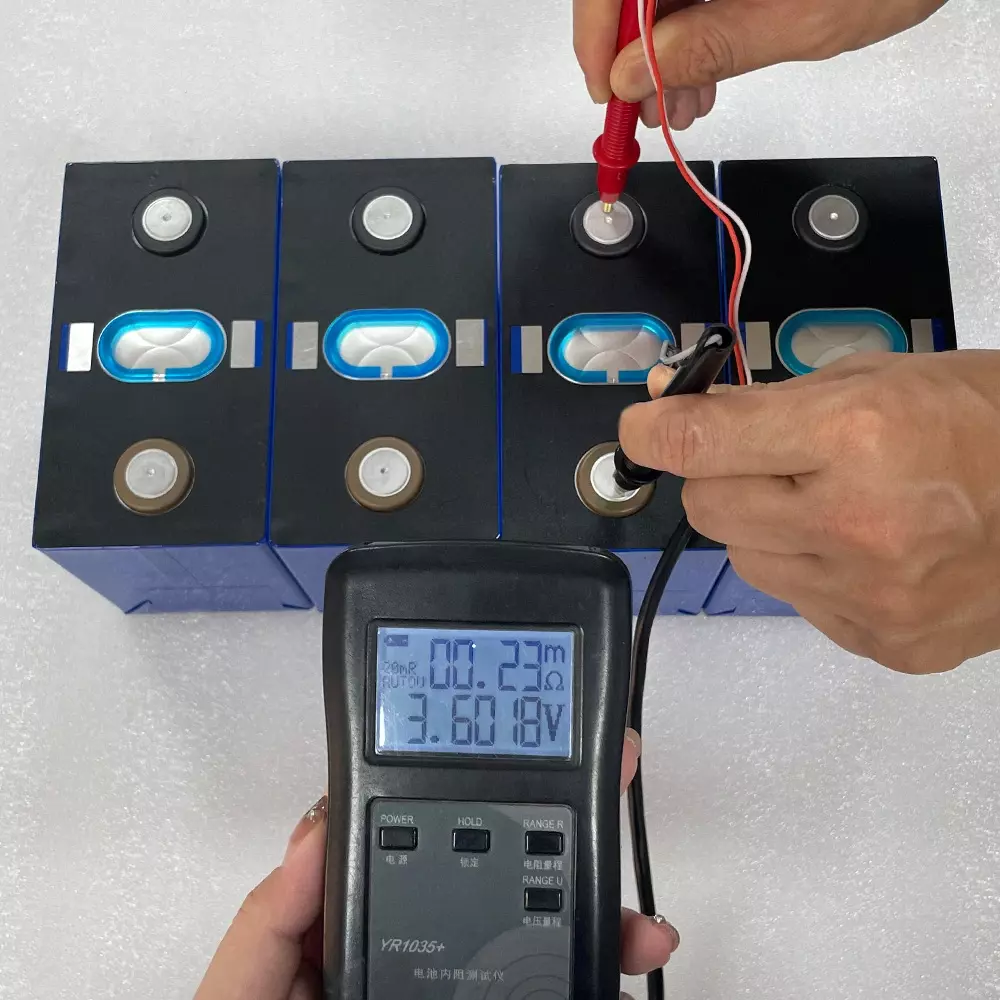

| Internal Resistance： | ≤0.7mΩ |
| Charge Temperature(℃)： | 0°C~60°C |
| Discharge Temperature(℃)： | -20°C~60°C |
| Cycle life： | More than 2000 times |
| Weight: | 2.7 kg |
| Size(mm)： | T79*W148*H105 (mm) |
| Certification： | CE,UL,UN38.3,MSDS |
Key Features:
1. Capacity Energy Storage
The CATL 3.7V 196AH NMC prismatic battery offers a nominal capacity of 196Ah, enabling long - duration power supply for high - energy - demand applications.
2. Fast Charging & High Discharge Rate
It supports a 1C maximum charge rate and a 3C maximum discharge rate, allowing for rapid recharging and high - power output when needed.
3. Low Internal Resistance
With an internal resistance of ≤0.7mΩ, this CATL 3.7V 196AH NMC prismatic battery minimizes energy loss during charge - discharge cycles, ensuring efficient power delivery.
4. Wide Discharge Temperature Range
The battery can operate within a discharge temperature range of - 30℃ to 60℃, making it suitable for use in extreme environmental conditions.
Application:
1. Electric Vehicles
The CATL 3.7V 196AH NMC prismatic battery is ideal for powering electric cars, providing the necessary energy for long - distance travel.
2. Recreational Vehicles
It can be used in RVs to support various onboard electrical systems, including lighting, appliances, and auxiliary power needs during travel.
3. Golf Carts
The high - capacity and efficient power delivery of the battery make it a great choice for golf carts, ensuring smooth operation on the golf course.
4. Boat
In marine settings, the battery can power electric boats, providing reliable energy for propulsion and onboard electronics even in harsh marine environments.
