3.7V 50Ah NMC Prismatic Battery
High Quality CALB Contemporary Amperex Technology 3.7V 50Ah NMC Prismatic Battery
| Brand Name： | CALB |
| Battery Type： | NMC Prismatic Battery |
| Nominal Capacity(Ah)： | 50AH |
| Nominal Voltage(V)： | 3.7V |
| Max Charge Voltage(V)： | 4.2V |
| Discharge Cut-off Voltage(V)： | 2.75V |
| Max Charge rate： | 1C |
| Max Discharge rate： | 1C |
| Internal Resistance： | ≤0.6mΩ |
| Charge Temperature(℃)： | 0°C~60°C |
| Discharge Temperature(℃)： | -20°C~60°C |
| Cycle life： | More than 2000 times |
| Weight: | 0.92 kg |

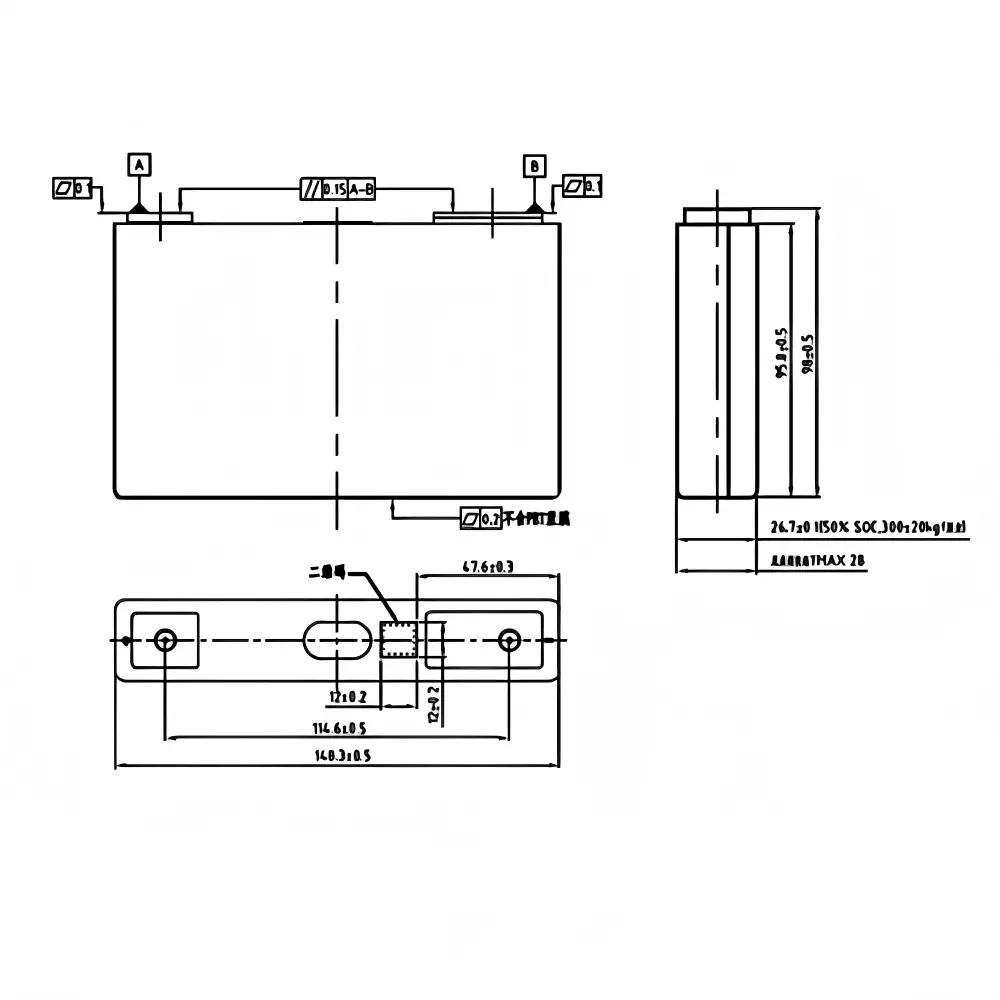

| Size(mm)： | T26*W148*H98 (mm) |
| Certification： | CE,UL,UN38.3,MSDS |
Key Features:
1. Balanced Capacity & Performance Delivers a 50Ah nominal capacity at 3.7V, balancing energy density and power output for versatile applications.
2. Low Internal Resistance Features a low internal resistance range (0.60–0.80mΩ) for efficient power transfer and minimal energy loss.
3. Compact & Lightweight Weighing 900±25g and with a compact design (dimensions derived from similar NMC prismatic cells), it is easy to integrate into space - constrained systems.
4. Wide Operating Temperature Range Supports charging at - 5~55℃ and discharging at - 30~55℃, enabling stable performance in various environmental conditions.
Application:
1. Electric Vehicles
Suitable for electric cars, golf carts, electric motorcycles, forklifts, and electric tricycles, providing the necessary power for their operation.
2. Marine Applications
Can be used in boats to power on - board electrical systems, benefiting from its stable voltage and energy storage capacity.
3. Portable Energy Storage
Ideal for portable energy storage systems and small - scale backup power supplies due to its compact size and reliable energy output.
4. Renewable Energy Storage
Can be integrated into small - scale solar or wind energy storage setups to store excess energy for later use.
