CALB 218ah 16S1P 59.2V calb nmc battery prismatic rechargeable module storage cell battery For solar energy storage station
Hot sale CALB 3.7V 16s1p 59.2v 218ah battery module prismatic rechargeable Lithium ion Battery Module For Leaf EV
Brand New Grade A lithium ion battery module
Factory directly sell with high quality
100% testing with voltage, internal resistance, isolation testing and capacity testing
Product Type:
Technical Parameters:
|
Battery type：
|
59.2V 218Ah NMC battery Module
|
|
Nominal Voltage(V)：
|
59.2V
|
|
Nominal Capacity(mAh)：
|
218AH
|
|
Max Charge Voltage：
|
67.2V
|
|
Discharge cut-off voltage：
|
44V
|
|
Max charge current：
|
1C
|
|
Max discharge current：
|
3C
|
|
Internal Resistance：
|
≤4.8mΩ
|
|
Charge Temperature(℃)：
|
0~55Centigrade
|
|
Discharge Temperature(℃)：
|
-20~55Centigrade
|
|
Storage Temperature(℃)：
|
-20~45Centigrade
|
|
Cycle life：
|
more than2000times
|
|
Weight(g)：
|
59KG
|
|

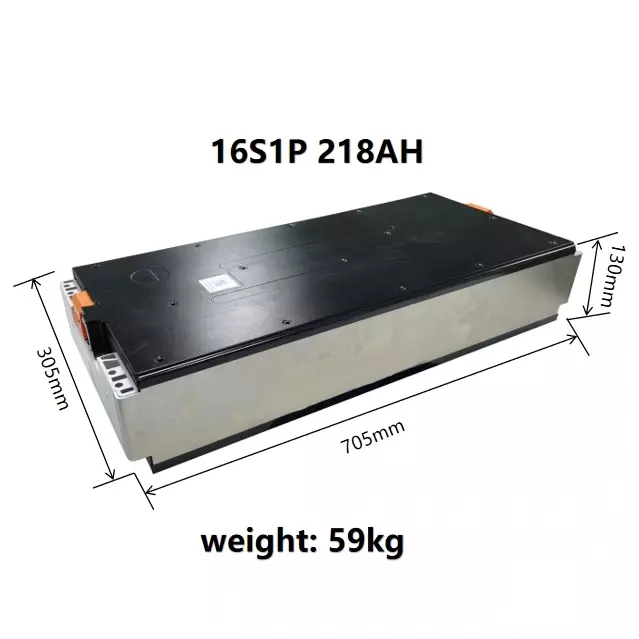

Size(mm)：
|
705*305*130mm
|
Cautions of Battery Operation:
1.Please read the instructions carefully and pay attention to the marks on the surface of battery before use.
2.During operation, please keep the cell away from heat source, fire source. Never beat, drop or shock the cell.
3.Do not directly solder the cell or pierce it with a nail or other sharp object.
4.Do not turn over battery. Keep it from strike, throw, tread or bending.
5.Do not make battery short-circuited, in order to avoid from danger incurring or battery damage.
6.Discarded battery should be well disposed. Do not throw it into the fire or water.
