Svolt Grade A 4S2P 14.8V 172Ah NMC Module Lithium Ion Battery Rechargeable Nmc for Electric Motormobile car EV
SVOLT 4S2P 14.8V 172ah high capacity battery home solar energy system high voltage battery Lithium for leaf car batter
Brand New Grade A lithium ion battery module
Factory directly sell with high quality

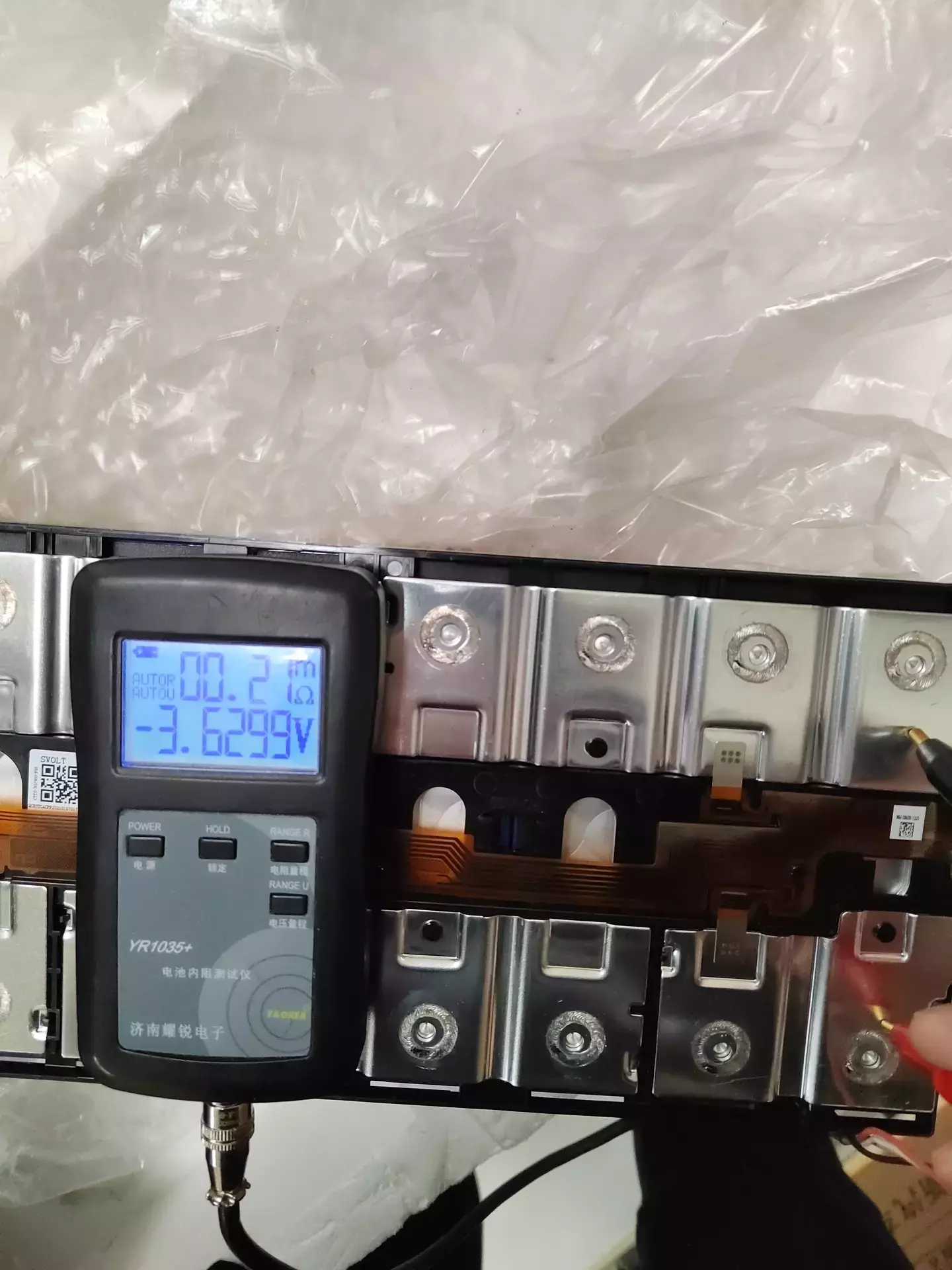

100% testing with voltage, internal resistance, isolation testing and capacity testing
Product Type:
Technical Parameters:
|
Battery type：
|
172ah 4s2p module
|
|
Brand
|
HY-SVOLT
|
|
Nominal Voltage(V)：
|
14.8V
|
|
Nominal Capacity(mAh)：
|
172AH
|
|
Max charge current：
|
1C
|
|
Max discharge current：
|
3C
|
|
Charge Temperature(℃)：
|
0~55Centigrade
|
|
Discharge Temperature(℃)：
|
-20~55Centigrade
|
|
Storage Temperature(℃)：
|
-20~45Centigrade
|
|
Cycle life：
|
more than1500times
|
|
Weight(g)：
|
11.9KG
|
|

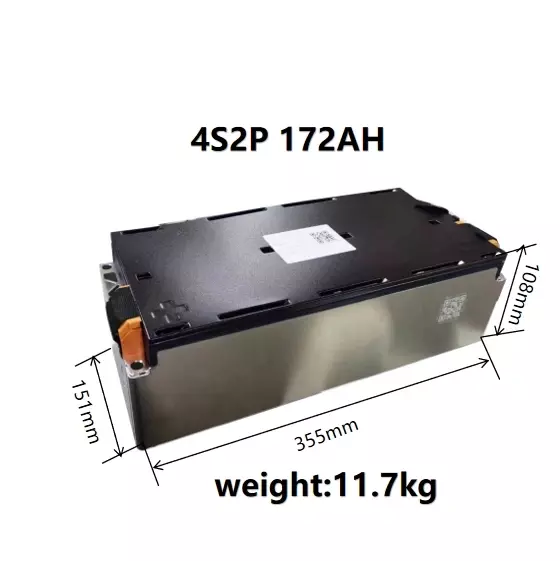

Size(mm)：
|
105*150*352mm
|
Application-Focused Design for EV and Storage Integrators
The HY-SVOLT 4S2P 14.8V 172Ah NMC module by Starmax Energy targets OEMs and system integrators requiring robust, high-capacity power sources for electric vehicles and modular energy storage. Engineered for demanding use cases, it meets the needs of battery supplier networks and solution providers looking for reliability, cycle longevity, and integration flexibility. This module is ideal for light EVs, e-mobility fleets, or commercial-grade energy storage infrastructure.
Technical Highlights and Cell-Level Performance

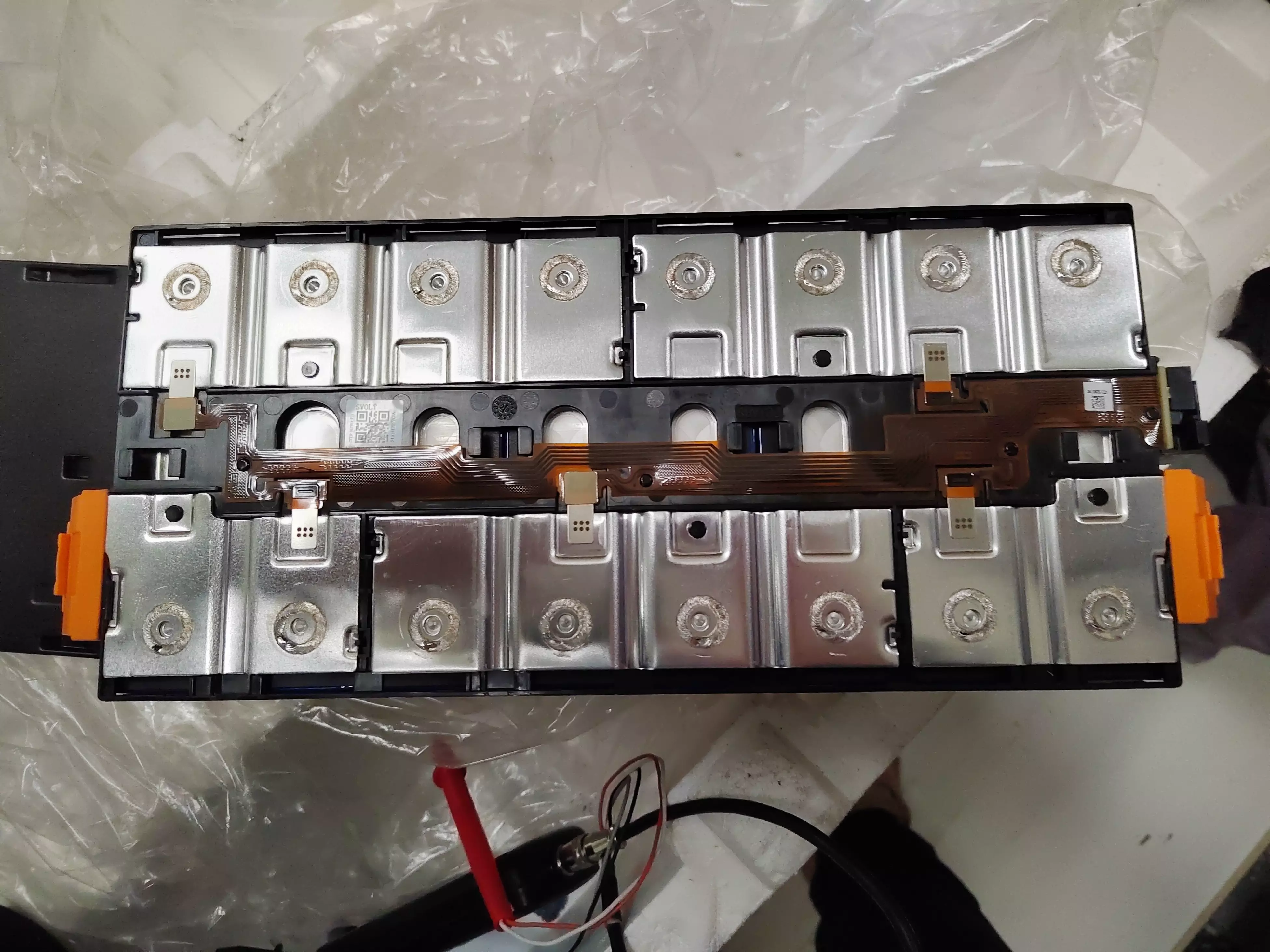

Built with Grade-A NMC prismatic cells, this module delivers a nominal voltage of 14.8V and a rated capacity of 172Ah. It supports up to 3C discharge and 1C charge rates, functioning reliably in environments ranging from ‑20℃ to 55℃. With a cycle life of over 1500 cycles and dimensions of 105×150×352mm at 11.9kg, the module is factory-tested for voltage, internal resistance, insulation, and capacity. This attention to precision aligns with the standards of top lithium ion battery manufacturers and ensures stable field performance.
Multi-Sector Adaptability and Modular Scalability
The 14.8V NMC module is compatible with diverse applications such as electric mobility, solar storage arrays, hybrid energy systems, and prototype development platforms. Its modular configuration allows scalable integration in both series and parallel to build larger energy systems. For clients seeking custom lithium ion battery engineering, this product offers the flexibility to configure tailored solutions while maintaining compliance with key industrial and environmental standards.
