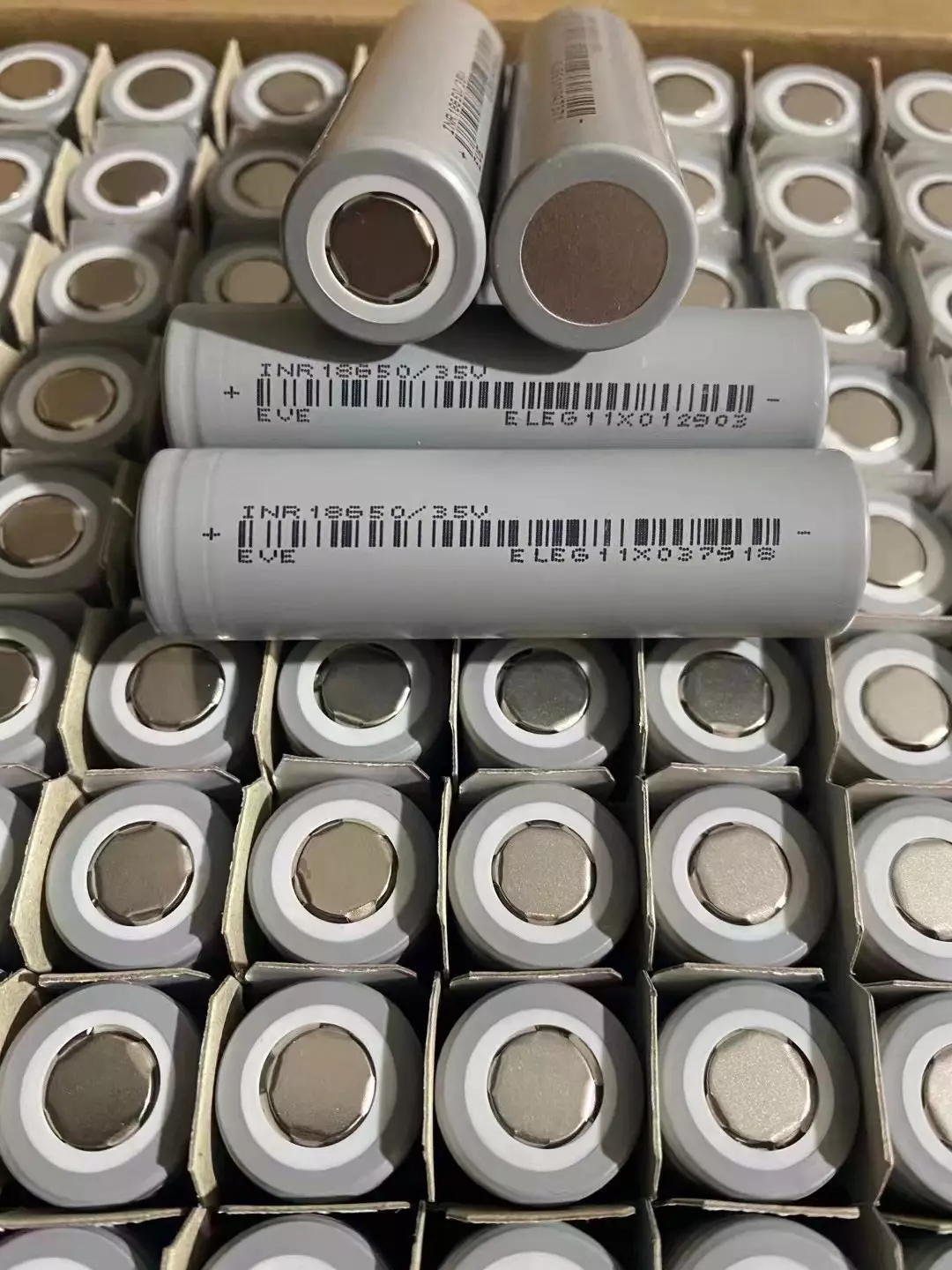

INR18650 35V 3500mAh 3.7V Lithium Ion Battery 3500mAh 18650 Battery 18650 3500mAh Li ion Batteries For Vehicle
Brand: HAICHEN
MOQ: 2 Pieces
Delivery time: 15 Day
Grade A New NMC Battery Cell, High Quality;
100% inspected and packed very well, 2-Year Warrant
Product Details
EVE 35V 18650 3500mah 3.7v battery rechargeable 18650 battery 3500mah E-bike scooter lithium ion battery
|
Product Name
|
EVE 18650 33V
|
|
Nominal Capacity
|
3500mAh
|
|
Nominal voltage
|
3.7v
|
|
Standard charge
|
0.5C (1700mA) 4.2V, cut-off 50mA
|
|
Max. charge voltage
|
4.2V +/- 0.05V
|
|
Standard discharge
|
0.2C (680mA), cut-off 2.5V
|
|
Max. discharge current
|
10A
|
|
Weight
|
50g
|
|
Operating temperature
|
Charge: 0° ~ 45°C, Discharge: -20°C ~ 60°C
|
|
Storage temperature
|
1 month: -20°C ~ 60°C, 3 months: -20°C ~ 45°C, 1 year: -20°C ~ 20°C
|
|

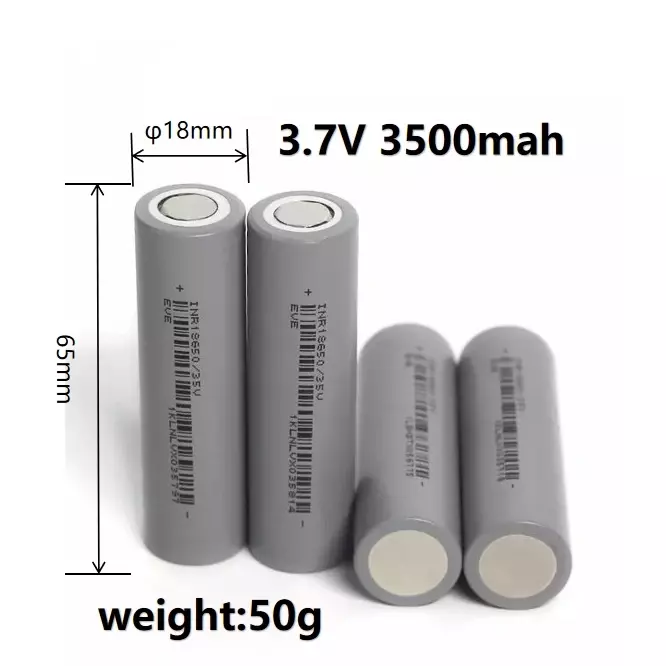

Cell Dimension
|
Height: 65.00±0.15mm
Diameter: 18.35±0.10mm
|
|
Operating Temperature Range
|
Charging Temp. 0~15°C
Discharging Temp. 15~50°C
Storage Temp
0~60°C,≤1 month
0~45°C,≤3 month
0~25°C,≤1year
Storage Humidity ≤65% RH
|
|
Continuous Charging/Discharging rate
|
1C/3C
|
Safety precautions and prohibitions!！
1.Don't leave a cell near a fire or a heat source.
2.Don't throw a cell into a fire.
3.Don't immerse, throw, and wet cell in water / seawater.
4.Don’t store metallic objects (such as keys or screwdriver) near the cell.
5.Don't short circuit (+) and (-) terminals with metallic object intentionally.
6.Don't pierce cells with a sharp object such as a needle, or screwdrivers.
7.Don't heat a part of cells with heating objects such as a soldering iron.
8.Don't hit cells with heavy objects such as a hammer, or heavy weights.
9.Don't put the a cell into a microwave oven, dryer, or a high-pressure container.
10.Don’t expose to water splashing condition.
11.Don’t keep batteries close to baby.
Cautions of Battery Operation
* Use high hardness custom sponge to strengthen the battery
* 5 layers of dangerous goods export corrugated carton
* Positive and negative paste insulation tape
* We will label test data on each cell before delivery
* If customer have requirement, we can provide Wooden Packing for shipping.
