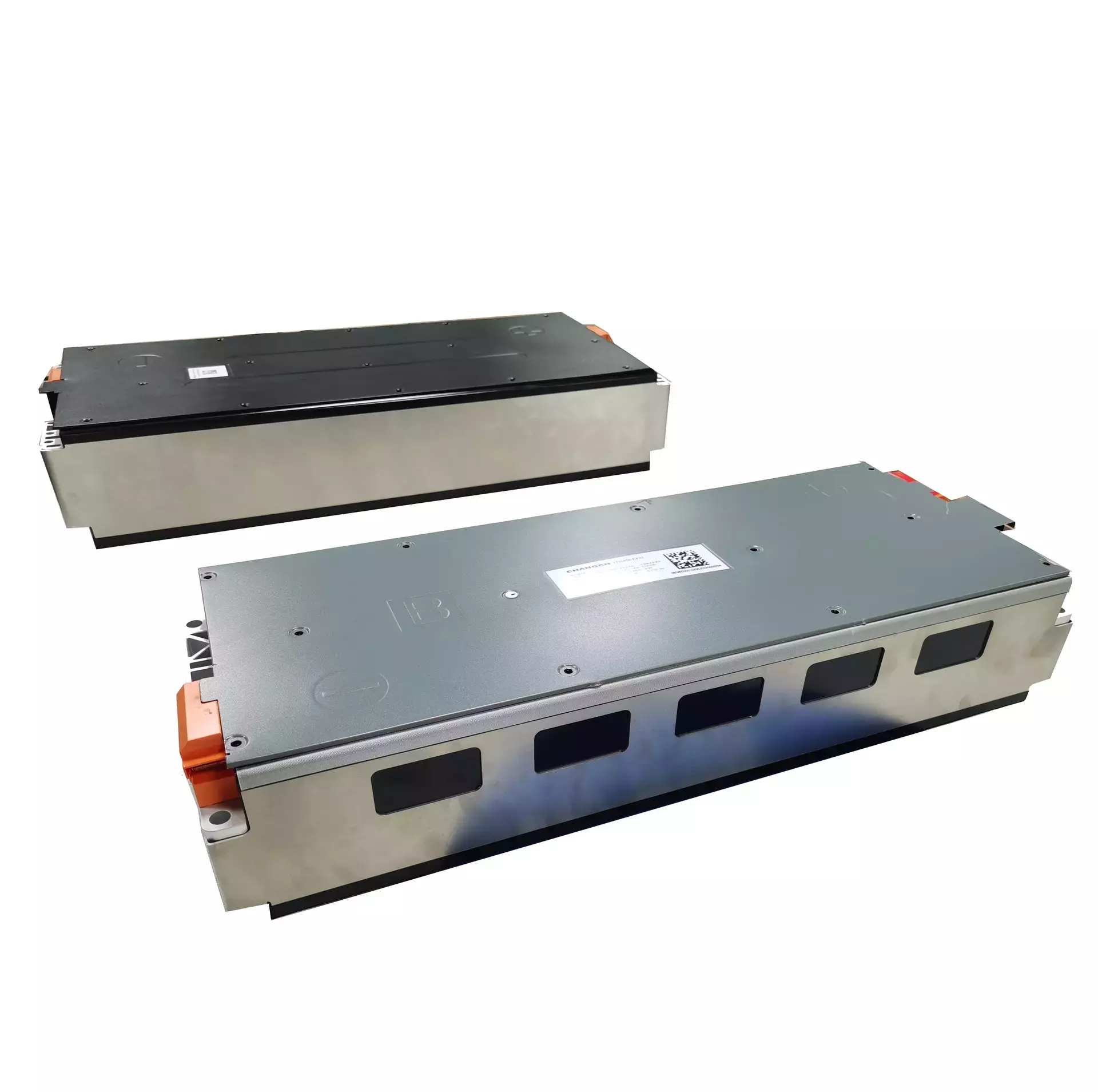

New Arrival Battery VDA module 12s1p 43.2v 147ah Ncm Rechargeable Lithium Ion Battery For Electrical Vehicle Golf Car
Brand: HAICHEN
MOQ: 2 Pieces
Delivery time: 15 Day
Provide battery solution for electric car with high quality and competitive cost
1.Manufacturer Automated production,Prodcut consistency.
2.Low IR & Low temperature rise.
3.Excellent rate performance.
4.Explosion-proof & No leakage.
Product Details
Grade A 12S1P 44.4V 43.2V 12S1P 147Ah nmc module ev battery module for electric car solar energy storage
Brand New Grade A lithium ion battery module
Factory directly sell with high quality
100% testing with voltage, internal resistance, isolation testing and capacity testing
Product Type:
Product Name: Lithium ion battery module
Technical Parameters:
|
Battery type
|
12S1P NMC
|
|
Nominal Voltage(V)
|
44.4V
|
|
Nominal Capacity
|
147Ah
|
|
Cell inside
|
CALB 3.7V 147AH NMC cells
|
|
Configuration
|
12S1P
|
|
1Max charge current
|
1C
|
|
Max discharge current
|
3C
|
|
Standard Charge current
|
0.2C-0.5C
|
|
Full Charged Voltage
|
52.2V
|
|
Charge Cut-off Voltage
|
52.2V
|
|
Discharge Cut-off Voltage
|
33V
|
|
Net Weight
|
31KG
|
|
Dimensions
|

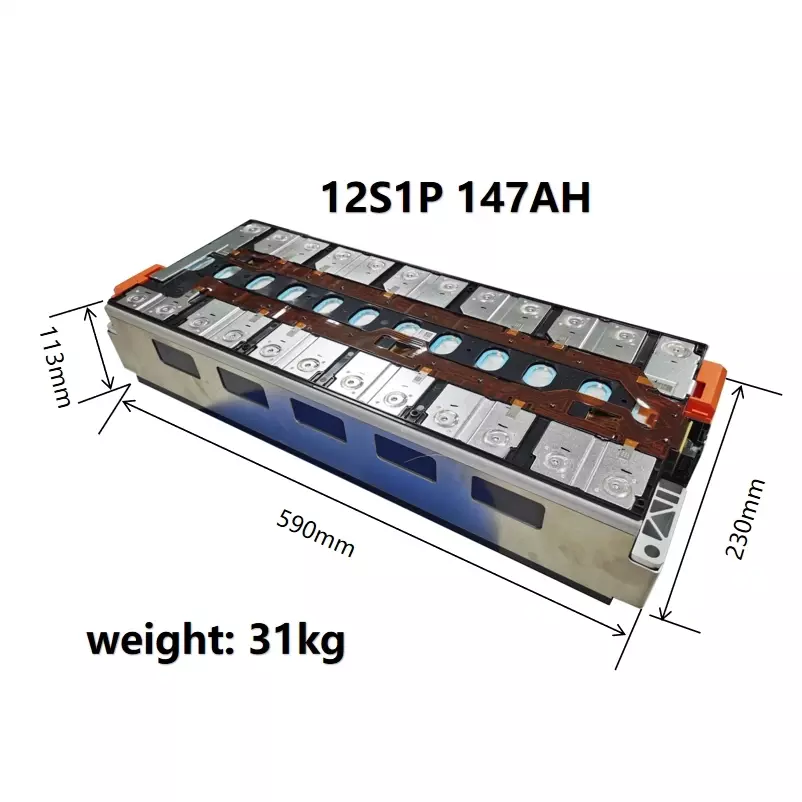

L595*W225*H110mm
|
|
Cycle Life
|
1500times(80% of initial capacity at 0.2C rate, IEC Standard)
|
|
Operating Temperature
|
Charging: 0~55Centigrade
|
|
Discharge Temperature(℃)：
|
-20~55Centigrade
|
|
Storage Temperature
|
-20~45Centigrade
|
|
Connector
|
Threaded terminals
|
Compact Power Module for Electric Vehicles and Storage Systems
The Starmax Energy 43.2V 147Ah VDA module, powered by CALB’s advanced NCM chemistry, offers an optimized solution for OEMs and developers requiring compact, energy-dense modules. Its 12S1P cell configuration enables seamless integration in space-constrained EV platforms and stationary storage arrays. With robust aluminum casing and precisely engineered busbars, the module ensures enhanced thermal balance and electrical consistency during dynamic load cycles. As one of the reliable battery energy storage systems manufacturers, Starmax delivers scalable modules tailored to high-efficiency transport and renewable storage environments.
High-Performance Electrochemical Design
This VDA module incorporates high-nickel NCM cells that provide a nominal voltage of 43.2V and a rated capacity of 147Ah. It supports peak continuous discharge current up to 294A, making it suitable for traction systems in light electric vehicles, golf carts, and AGVs. The design is built to withstand harsh usage environments, ensuring performance longevity even under high temperature and frequent cycling conditions. Integrated with comprehensive electrical insulation and precision-welded tabs, it aligns with stringent lithium battery manufacturing quality standards, ensuring both safety and durability in critical operations.
Flexible Deployment for High-Load Applications
With its modular VDA footprint and high-capacity cell configuration, the module allows battery designers to scale systems efficiently—whether for dual-module EV arrays or decentralized BESS infrastructure. Its form factor supports vertical or horizontal stacking with minimal structural modification. This solution is ideal for integrators in need of battery energy storage solutions that maintain energy density without compromising stability, meeting the demands of rapid charge/discharge systems, hybrid propulsion, or off-grid storage nodes.
