Battery Module 4S1P 14.8V 150Ah 153Ah NCM Lithium ion Battery Module for 53KWh Leaf Power Supply Electric Vehicle
1P4S 14.8V 153Ah NCM Lithium ion battery module 4S1P Electric vehicle EV HEV battery module Energy storage
Brand New Grade A lithium ion battery module
Factory directly sell with high quality
100% testing with voltage, internal resistance, isolation testing and capacity testing
Product Type
1P4S 14.8V 153Ah NCM Lithium ion battery module 4S1P Electric vehicle EV HEV battery module Energy storage
Brand New Grade A lithium ion battery module
Factory directly sell with high quality
100% testing with voltage, internal resistance, isolation testing and capacity testing
Product Type
Technical Parameters
|
Battery type
|
NMC lithium ion module
|
|
Nominal Voltage(V)
|
14.8V
|
|
Nominal Capacity
|
153Ah
|
|
Cell inside
|
Tafel 3.7V 153AH NMC cell
|
|
Configuration
|
4S1P
|
|
1Max charge current
|
1C
|
|
Max discharge current
|
3C
|
|
Standard Charge current
|
0.2C-0.5C
|
|
Full Charged Voltage
|
16.8V
|
|
Charge Cut-off Voltage
|
17V
|
|
Discharge Cut-off Voltage
|
11V
|
|
Net Weight
|
11.85KG
|
|

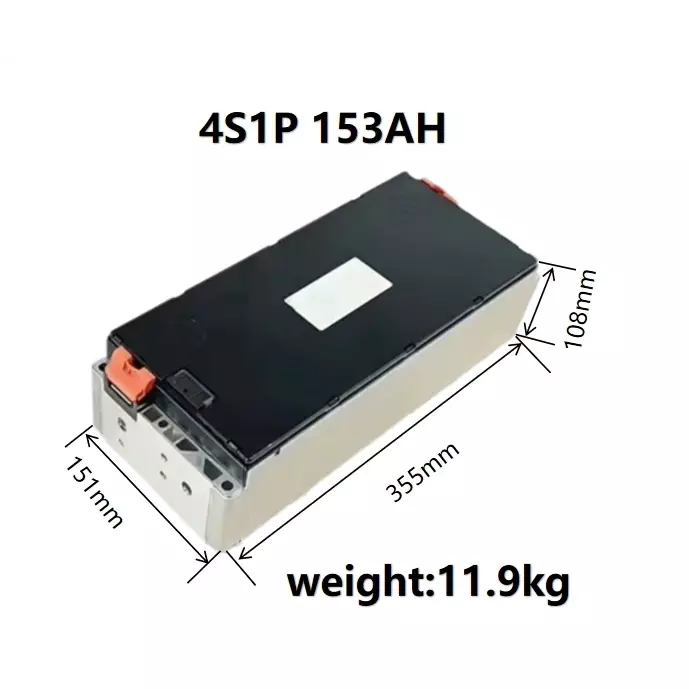

Dimensions
|
L354*W150*H110mm
|
|
Cycle Life
|
2000times(80% of initial capacity at 0.2C rate, IEC Standard)
|
|
Operating Temperature
|
Charging: 0~55Centigrade
|
|
Discharge Temperature(℃)：
|
-20~55Centigrade
|
|
Storage Temperature
|
-20~45Centigrade
|
|
Connector
|
Threaded terminals
|
Power Your Electric Vehicles with Starmax Energy
The Starmax Energy 53KWH Lithium Ion Battery Module provides 153Ah of high-capacity energy, ideal for powering electric vehicles like the Nissan Leaf. With a nominal voltage of 14.8V, this battery module is engineered to offer extended driving ranges and smooth, efficient power for electric transportation. Whether you're commuting or on a road trip, this NMC battery delivers exceptional performance.
Sustainable and Eco-Friendly Power Solution
Built using advanced NMC technology, the Starmax Energy Lithium Ion Battery offers high energy density and longer life cycles. By reducing the need for frequent charging, it minimizes energy waste and helps reduce your carbon footprint, making it a sustainable solution for eco-conscious drivers and businesses. This battery module provides a clean alternative to traditional fossil-fuel-based power systems, supporting greener transportation.
Enhanced Safety for Long-Term Use
Safety is paramount in every Starmax Energy product. The NMC battery cells used in this 4S1P battery module come equipped with built-in protection systems, such as thermal and overcharge safeguards, to ensure the safety and reliability of the battery during prolonged use. With low internal resistance (≤ 1.3mΩ), this battery module guarantees stable operation even under extreme conditions, making it perfect for electric vehicles like the Nissan Leaf.
Versatile Power Source for a Range of Applications
While this 53KWH lithium ion battery is optimized for electric vehicles like the Nissan Leaf, it is also a versatile power source for various other applications, including golf carts, boats, and even energy storage systems. The 4S1P 153Ah module offers reliable, scalable power for any need, making it an excellent choice for individuals and businesses looking for adaptable energy solutions.
Long Lifespan and Cost-Effective Performance
Designed for over 2000 charge-discharge cycles, the Starmax Energy 53KWH Lithium Ion Battery Module offers a long lifespan, minimizing the need for frequent replacements. This NMC battery module not only provides continuous, reliable performance but also offers a cost-effective solution for powering your electric vehicle or energy storage systems.
